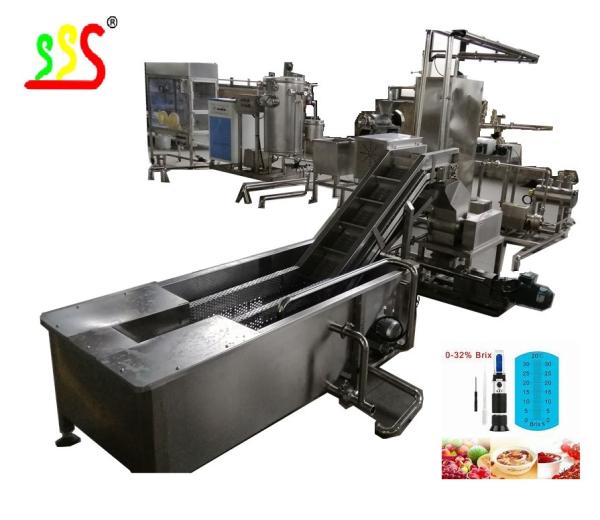

| A deployment unit |
| A1 | Rotor pump | Ø 1T-3T/H (varies according to material characteristics)
Ø Self-priming function, suction lift 6 meters
Ø Outlet pressure 0.6MPa
Ø Power 2.2KW
Ø The maximum allowable material viscosity is 1 million CP |
| A2 | Flowmeter | Ø Interface size: DN20
Ø Measurement accuracy: 0.5%
Ø Full scale range: 0.5-10 m/s
Ø 4-25MA output
Ø Self-diagnosis, fault record, output current test, control input (output), test, simulation test mode,
Ø Empty pipe indication settings, etc.
Ø It is used for measurement of raw materials, auxiliary materials, etc. |
| A3 | High Shear Excipient System | Ø Rated capacity: 300L;
Ø Three-layer jacket structure, middle polyurethane foam insulation, steam heating
Ø Steam valve group: drain valve, filter, pressure reducing valve, angle seat valve, steam trap, globe valve, etc.
Ø Including manhole, breathable cap, cleaning ball, water inlet, material inlet and outlet, sampling valve, glass sight tube;
Ø The surrounding R-shaped arcs are excessive and have no dead ends, and the mixing is more uniform;
Ø Sugar melting time: about 5-20min/time, the specific time needs to be determined according to the characteristics of different
materials;
Ø High-speed stirring at 2800rpm;
Ø Variable frequency speed regulation
Ø Power 7.5KW;
Ø For quick dissolution of excipients and sugar |
| A4 | Material pump
AIDEKE | Ø Flow: 1M3/H;
Ø Head 24m;
Ø Stainless steel
Ø Power: 0.75kw |
| A5 | Duplex filter | Ø Rated flow: 5T/H
Ø Filtration precision: 30um-1mm (optional standard specification) |
| A6 | Mixing tank | Ø Capacity: 1000L
Ø 304 stainless steel material;
Ø Double-layer upper and lower cone-bottom structure; inner wall 2.5mm, middle 50mm polyurethane foam, outsourcing 1.5mm
Ø paddle stirring;
Ø The outer surface adopts wire drawing board;
Ø Liquid level tube, temperature gauge;
Ø Cone top and cone bottom structure, cone bottom 15℃, including manhole, vent cap, cleaning ball, water inlet, material inlet and
outlet, sampling valve, glass sight tube;
Ø The inlet and outlet adopt anti-foam and anti-swirl structure;
Ø Variable frequency speed regulation
Ø Power 1.1kw |
| | Operation platform (for preparing and chemical accessories) | Ø 304 racks, skid plates, guardrails, ladders, etc. |
| A7 | Material pump | Ø Flow: 1M3/H;
Ø Head 24m;
Ø Stainless steel
Ø Power: 0.75kw |
| A9 | Duplex filter | Ø Rated flow: 5T/H
Ø Filtration precision: 30um-1mm (optional standard specification) |
| A10 | CIP return pump | Ø 5T/H
Ø With self-priming function |
| A11 | Centralized Control System | Ø Siemens PLC, touch screen
Ø The cabinet is made of SUS304 stainless steel;
Ø Schneider Omron Low Voltage Components
Ø AirTAC Pneumatic Components |
